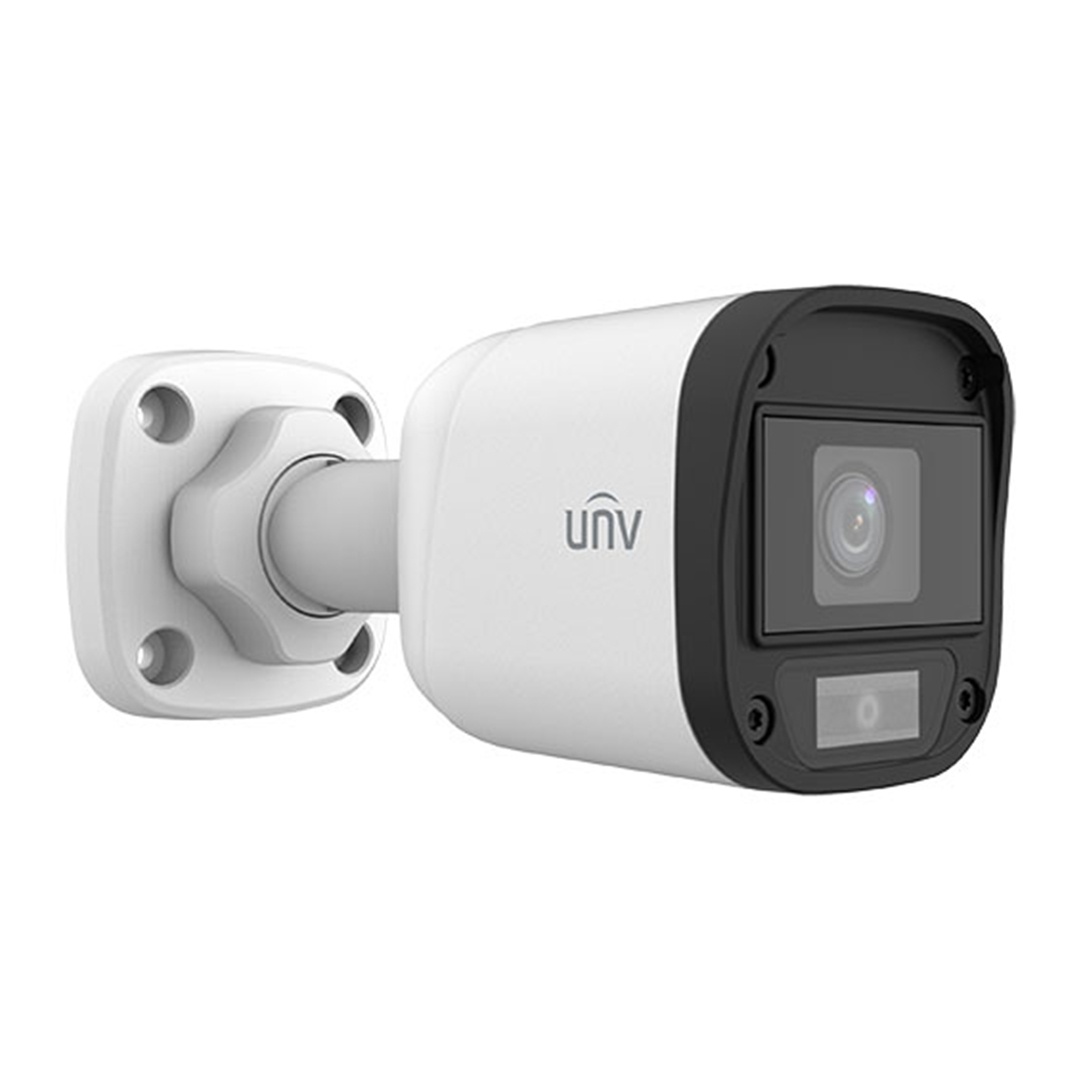

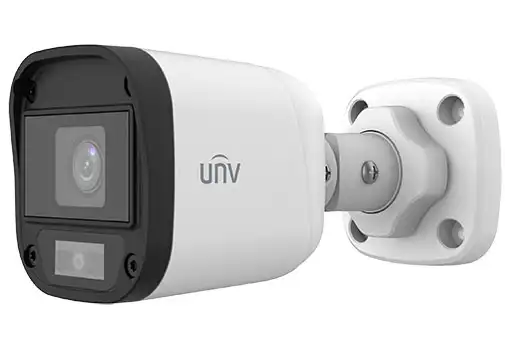

Uniview Security Camera,Outdoor, 2MP, 2.8mm Lens, UAC-B112-F40

Product Information

• Product: Mini Fixed HD Bullet Camera

• Brand: Uniview

• Model: UAC-B112-F40

• Condition: New

Technical Specifications

• Resolution: 2 Megapixel (1080P / 720P)

• Image Sensor: 1/3″ Progressive Scan CMOS

• Lens Type: 4.0 mm Fixed Lens (M12 mount)

• Field of View (FOV): Horizontal: 80.2°, Vertical: 40.7°, Diagonal: 90.5°

• Video Output / Ports: BNC, supports TVI / AHD / CVI / CVBS

• Frame Rate: 1080P @ 30fps/25fps; 720P @ 30fps/25fps

• Shutter Time: PAL: 1/25s–1/50000s, NTSC: 1/30s–1/50000s

• Illumination: Single IR LED, Smart IR, with auto IR-cut filter (ICR)

• IR Range: Up to 20 meters

• Advanced Settings: OSD menu (11 languages), 180° image flip (horizontal & vertical), 2D Digital Noise Reduction, DWDR

• Control Type: Settings adjustment via OSD menu (via DVR or supported monitor)

Physical & Environmental Specifications

• Power Requirements: DC 12V (±25%)

• Power Consumption: Max 2.88 W

• Operating Temperature: -30°C to 60°C

• Durability: IP67 (Water and Dust Resistant), 4KV lightning/surge protection

• Dimensions: 142 × 63 × 65 mm

• Weight: 135 g

• Color: White

• Material: Composite / Multi-material

Key Features

1. High-Quality Imaging: Delivers crisp 2 Megapixel (1080P / 720P) resolution for clear video monitoring.

2. Universal Compatibility: 4-in-1 output easily integrates with TVI, AHD, CVI, and CVBS surveillance systems.

3. Day/Night Vision: Features an automatic IR-cut filter (ICR) and Smart IR illumination for reliable viewing up to 20 meters in the dark.

4. Flexible Viewing Angles: Supports 180° horizontal and vertical image flipping.

5. Easy Configuration: User-friendly OSD menu available in 11 languages for quick setup.

6. All-Weather Reliability: Built with an IP67-rated waterproof and dustproof housing, functioning flawlessly in extreme temperatures (-30°C to 60°C).

7. Image Optimization: Equipped with 2D Digital Noise Reduction and DWDR to enhance image clarity in challenging lighting conditions.

8. Electrical Protection: Built-in 4KV surge and lightning protection for added hardware safety.

9. Versatile Installation: Designed for easy surface mounting, pole mounting, or attachment to a junction box.
